ntse cua feeder BY-VF500-S
Taw qhia
intelligent cua feeder yog ib qho ntawm peb lub tshuab nqus tsev vacuum tshiab,nws daws qhov teeb meem pub mis rau cov khoom siv ultra-nyias, cov khoom lag luam nrog cov hluav taws xob zoo li qub, cov khoom muag muag khoom noj. Lub thawv ntim khoom tuaj yeem tuav tau ntau tshaj 400MM qhov siab khoom ntawm ib zaug. Tshwj xeeb tshaj yog zoo rau cov khoom uas yooj yim los ua scratch.it tuaj yeem koom tes nrog UV inkjet tshuab luam ntawv, laser, TTO tshuab luam ntawv thiab lwm yam rau luam tawm hnub, fonts, cov duab yooj yim, tshwj xeeb tshaj yog haum rau QR code, QR code thiab ntau cov kab ntawv luam ntawv. Cov nyhuv yog zoo nkauj thiab raug. Dav siv nyob rau hauv ntim, luam ntawv, tshuaj, lub teeb tshuaj, zaub mov thiab lwm yam kev lag luam.
B.Technical parameter:
1, voltage: 220VAC 50HZ
2, lub zog: txog 2.0KW (nrog rau 1 lub tshuab nqus tsev twj)
3, Nyhav: 250 kg

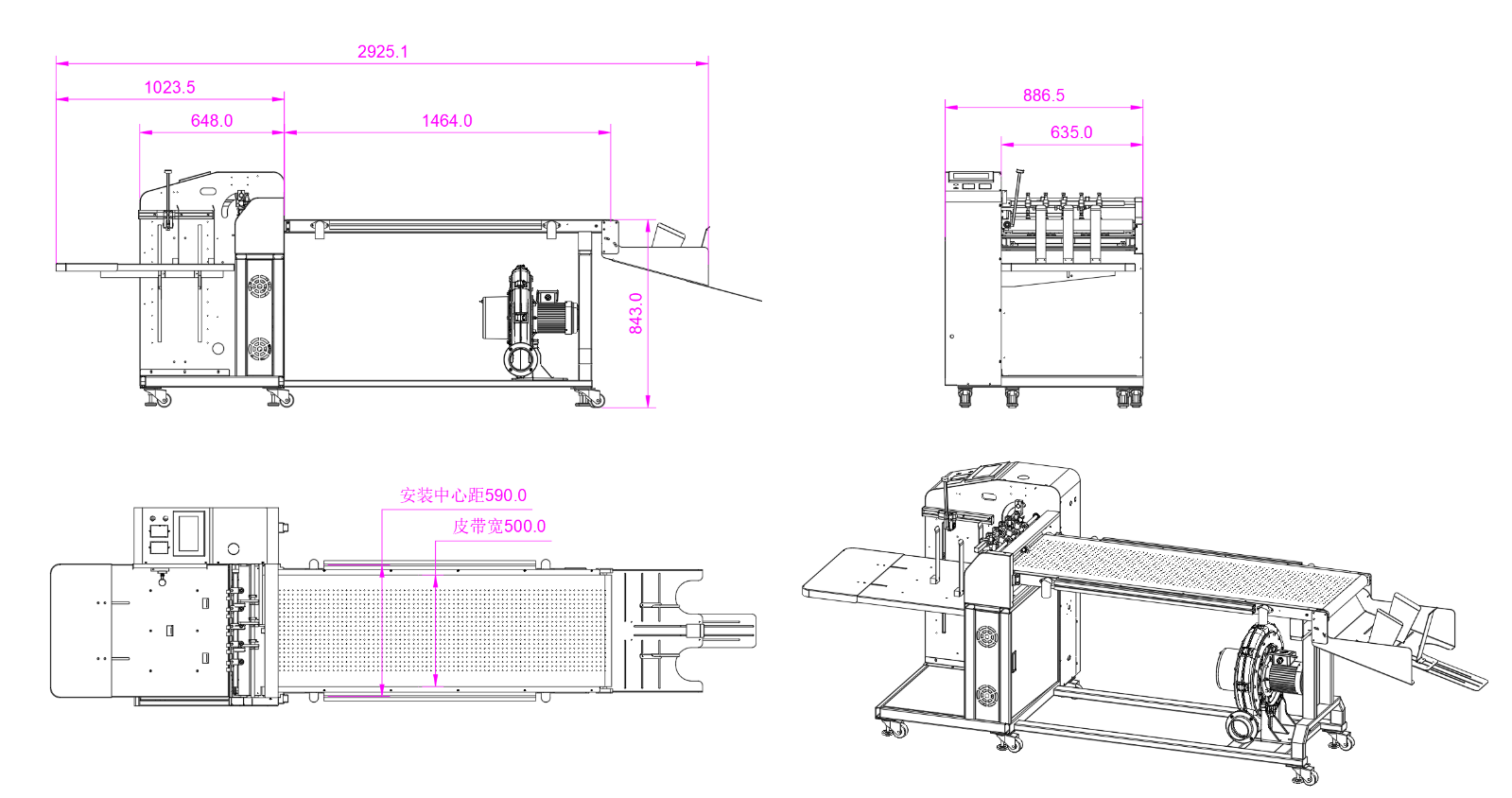

4, Dimension: raws li daim duab hauv qab no
5, muaj cov khoom: nyias, mos thiab breathless khoom thiab lwm yam zoo dua los muab cov qauv rau kev pom zoo ntxiv.
6, conveyor ceev: 0-50m / min
7, tswj txoj kev: PLC + transformer lossis DC brushless lub cev muaj zog
8, pub txoj kev: up-suction khob pub thiab up-out.
9, noj efficiency: raws li cov khoom loj, feem ntau 30-40 pcs / min.
10, pawg qhov siab ntawm ib zaug:: txog 200-300mm, nyob ntawm cov khoom
11, muab ob npaug rau qhov tseeb: +-0.1mm (optional function)
12, Muaj cov khoom loj: L (100-550) * W (100-480) * H (0.05-1) hli
13, cov khoom muaj: daim ntawv lo, hnab yas, PE hnab, PP zaj duab xis, PVC zaj duab xis thiab lwm yam.

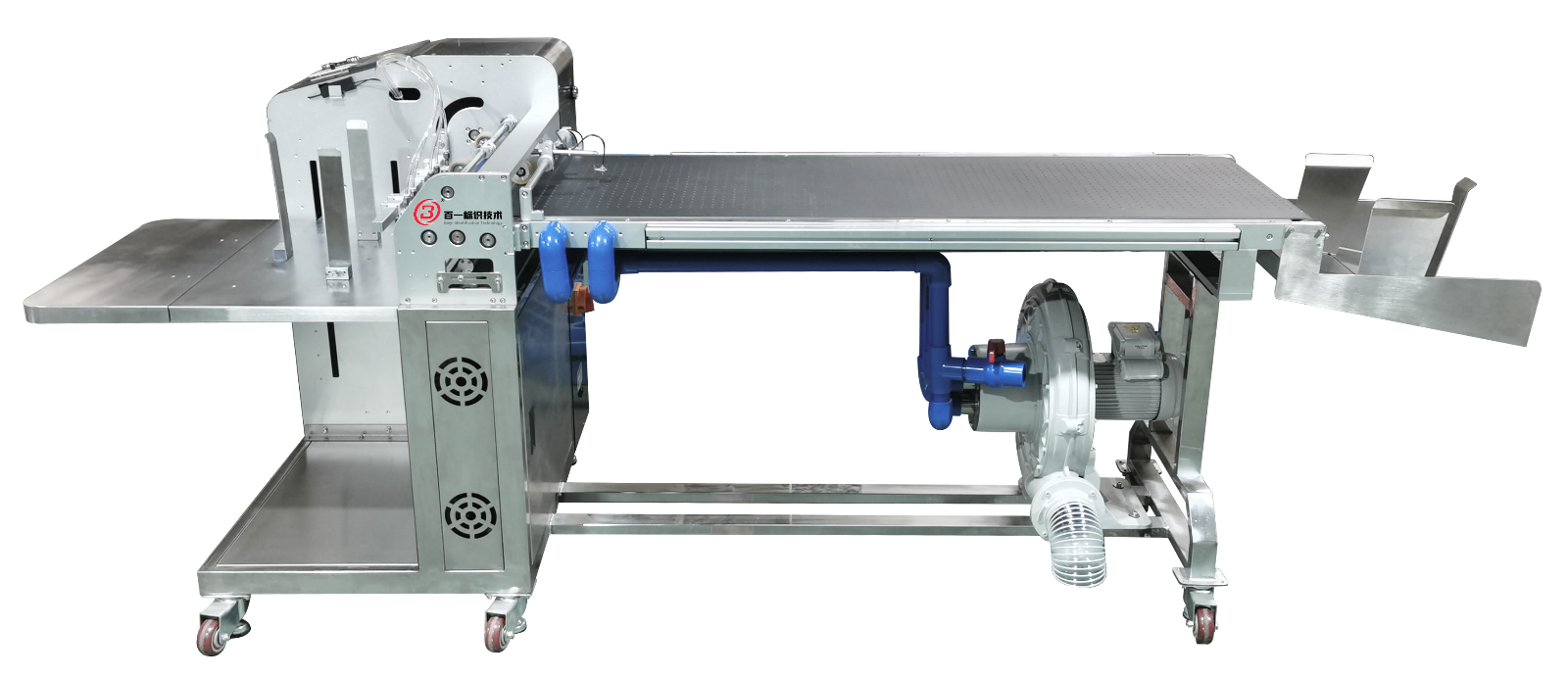

Nov yog daim duab hauv qab no:
Nov yog daim duab feeder hauv qab no:
